WDR-120-48

Invent, Innovate, Integrate

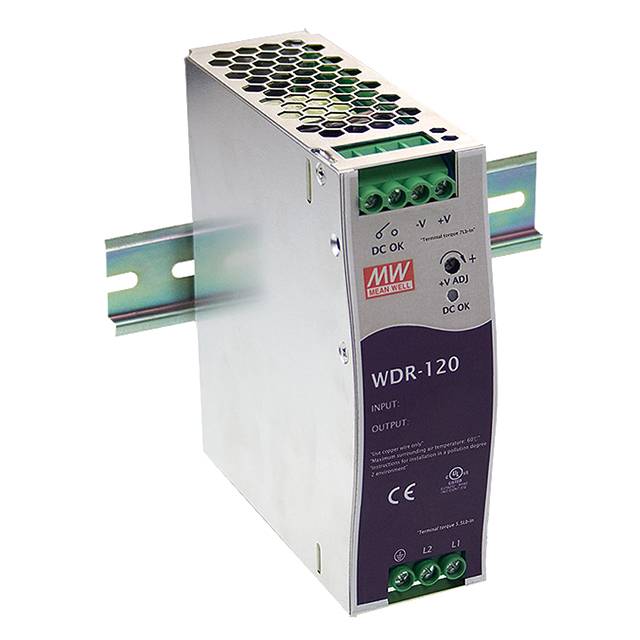

Images are for reference only. See Product Specifications for product details.

Part Number	WDR-120-48
Manufacturer	MEAN WELL
Description	AC/DC CONVERTER 48V 120W
Datasheet	View Datasheet
Category	Power Supplies - External/Internal (Off-Board)
Subcategory	AC DC Converters
Type	Enclosed
Series	WDR-120
Features	Adjustable Output
Approvals	CB, CE, cULus
Efficiency	92%
Other Names	1866-1089 WDR-120-48MW WDR-120-48MW-ND
Power Watts	120W
Applications	Hazardous Locations, ITE (Commercial)
Mounting Type	DIN Rail
Voltage Input	180 ~ 550 VAC (2PH), 254 ~ 780 VDC
Size Dimension	4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm)
Voltage Output1	48V
Numberof Outputs	1
Current Output Max	2.5A
Voltage Isolation	3kV
Detailed Description	189811
Minimum Load Required	No
Operating Temperature	-25°C ~ 70°C (With Derating)
Lead Free Status Ro H S Status	Lead free / RoHS Compliant
Moisture Sensitivity Level M S L	1 (Unlimited)
