Name: PS9905-Y-V-AX
Brand: CEL (California Eastern Laboratories)
SKU: PS9905-Y-V-AX
Rating: 4 (488 reviews)

Invent, Innovate, Integrate

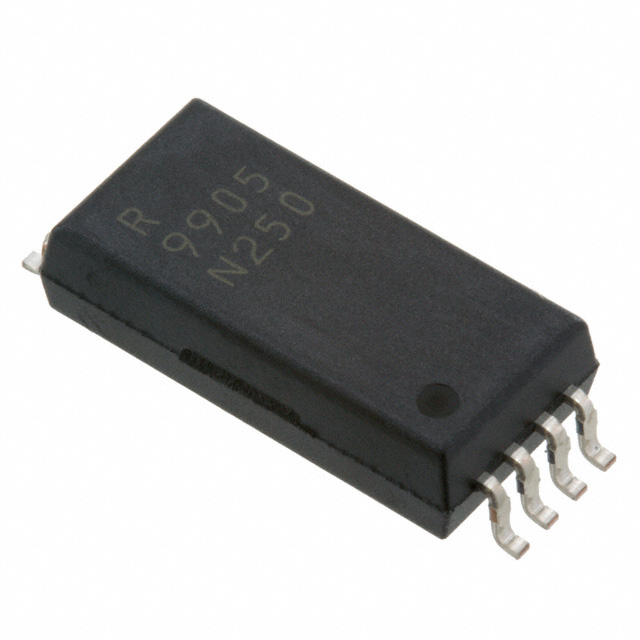

Images are for reference only. See Product Specifications for product details.

Part Number	PS9905-Y-V-AX
Manufacturer	CEL (California Eastern Laboratories)
Description	OPTOISO 7.5KV GATE DRIVER 8LSDIP
Category	Isolators
Subcategory	Isolators - Gate Drivers
Approvals	CSA, SEMKO, UL, VDE
Packaging	Strip
Technology	Optical Coupling
Package Case	8-SOIC (0.543", 13.80mm Width)
Mounting Type	Surface Mount
Voltage Supply	15 V ~ 30 V
Rise Fall Time Typ	50ns, 50ns
Numberof Channels	1
Voltage Isolation	7500Vrms
Current Peak Output	2.5A
Detailed Description	2.5A Gate Driver Optical Coupling 7500Vrms 1 Channel 8-LSDIP
Voltage Forward Vf Typ	1.56V
Current Output High Low	2A, 2A
Operating Temperature	-40°C ~ 110°C
Current D C Forward If Max	25mA
Supplier Device Package	8-LSDIP
Pulse Width Distortion Max	75ns
Lead Free Status Ro H S Status	Lead free / RoHS Compliant
Moisture Sensitivity Level M S L	1 (Unlimited)
Propagation Delaytp L Htp H L Max	150ns, 150ns
Common Mode Transient Immunity Min	25kV/µs
