Name: 803-83-006-30-480101
Brand: Preci-Dip
SKU: 803-83-006-30-480101
Rating: 4 (468 reviews)

Invent, Innovate, Integrate

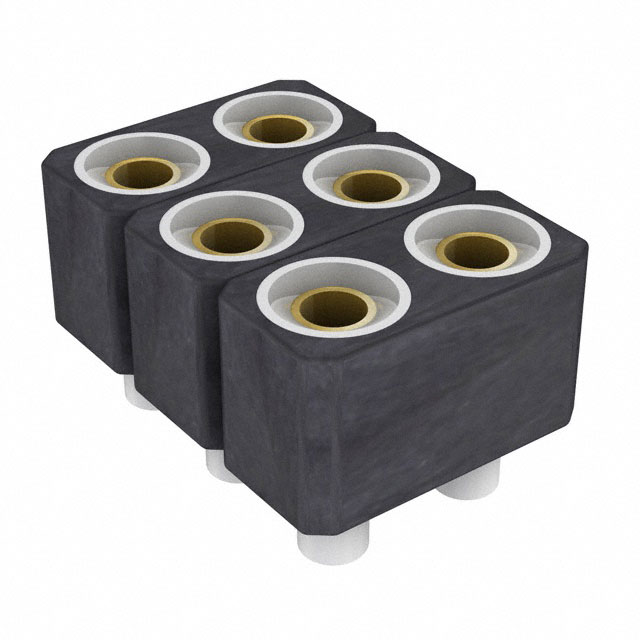

Images are for reference only. See Product Specifications for product details.

Part Number	803-83-006-30-480101
Manufacturer	Preci-Dip
Description	PCB CONN SURFACE MOUNT 2.54MM
Category	Connectors, Interconnects
Subcategory	Rectangular Connectors - Headers, Receptacles, Female Sockets
Style	Board to Board
Series	803
Packaging	Bulk
Contact Type	Female Socket
Pitch Mating	0.100" (2.54mm)
Termination	Solder
Contact Shape	Circular
Mounting Type	Surface Mount
Numberof Rows	2
Connector Type	Socket
Current Rating	3A
Fastening Type	Push-Pull
Contact Material	Beryllium Copper
Insulation Color	Black
Insulation Height	0.165" (4.20mm)
Row Spacing Mating	0.100" (2.54mm)
Contact Finish Post	Tin
Numberof Positions	6
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Finish Mating	Gold
Detailed Description	6 Position Socket Connector 0.100" (2.54mm) Surface Mount Gold
Operating Temperature	-55°C ~ 125°C
Numberof Positions Loaded	All
Lead Free Status Ro H S Status	Lead free / RoHS Compliant
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level M S L	1 (Unlimited)
Contact Finish Thickness Mating	29.5µin (0.75µm)
