MTLW-105-06-G-D-000

Invent, Innovate, Integrate

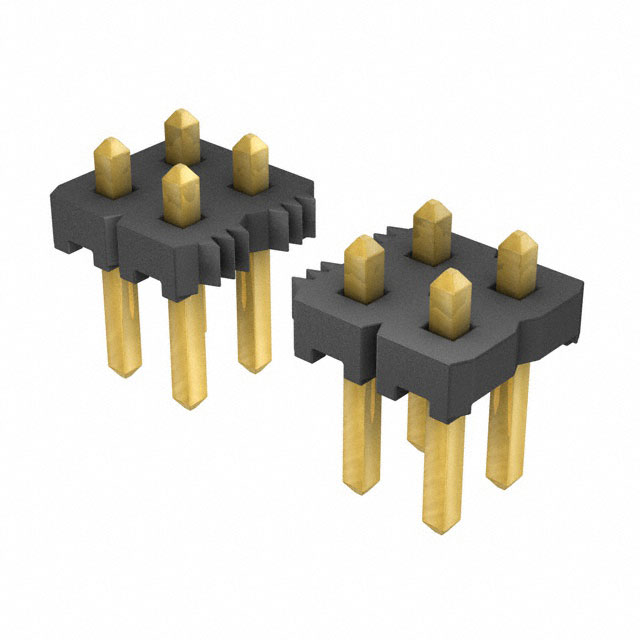

Images are for reference only. See Product Specifications for product details.

Part Number	MTLW-105-06-G-D-000
Manufacturer	Samtec, Inc.
Description	LOW PROF HEADER .025" 10POS GLD
Category	Connectors, Interconnects
Subcategory	Rectangular Connectors - Headers, Male Pins
Style	Board to Board or Cable
Series	Flex Stack, MTLW
Packaging	Bulk
Shrouding	Unshrouded
Other Names	Q5600142A
Contact Type	Male Pin
Pitch Mating	0.100" (2.54mm)
Termination	Solder
Contact Shape	Square
Mounting Type	Through Hole
Numberof Rows	2
Connector Type	Header
Current Rating	5.2A per Contact
Fastening Type	Push-Pull
Contact Material	Phosphor Bronze
Insulation Color	Black
Insulation Height	0.060" (1.52mm)
Row Spacing Mating	0.100" (2.54mm)
Contact Finish Post	Gold
Numberof Positions	10
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Finish Mating	Gold
Detailed Description	423286
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.300" (7.62mm)
Numberof Positions Loaded	All
Lead Free Status Ro H S Status	Lead free / RoHS Compliant
Contact Finish Thickness Post	3.00µin (0.076µm)
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level M S L	1 (Unlimited)
Contact Finish Thickness Mating	10.0µin (0.25µm)
